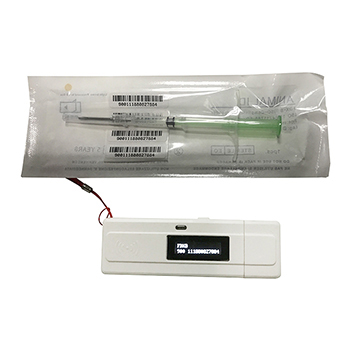

pocket handheld rfid reader
This handheld reader dedicated to the field of animal identification, can detect meet ISO11784/85 standard animal tag, product use advanced RF transmitting/receiving circuit and embedded microcontroller controller, and combine with strict decoding arithmetic to receive ISO11784/85 compatible tag, check and read data, with receive high sensitivity, small working current, easy to take, Cost-effective and so on feature, data can show on screen in time, and communicate with PC through Bluetooth or USB interface, then transfer animal code and relative operation data to backend database.
Product Introduction
1. The smaller size, portable to carry
2. Easy to operate, USB charging
3. LCD indication, blue LED display
4. Support ISO11784 / 11785 FDX-B and EMID
Tech Specification
Model |
PR01 |
Frequency |
134.2kHz |
Reading Distance |
≥7cm |
Screen |
1.04”,128x32pix |
Read indication |
Beep, Blue LED, LCD indication |
Dimensions |
109*34*14mm |
Charging indication |
Red LED in charging. Green LED when complete. |
Charging current |
<200mA, @5VDC on USB connector |
Work Current |
<60mA |
IDL Current |
<20mA |
Power-down Current |
<10uA |
Power Supply |
4.5V( lithium battery) |
