RFID reader

Animal microchip scanner

USB RFID Reader
Bluetooth(opitional)
134.2Khz/125Khz
ABS
Product description: Low Frequency Tag Reader Used For Animal Management, Resource Management, Railway Inspection etc.FDX-B Glass Tag Scanner Ear Tag Reader 134.2khz Microchip Handheld Animal RFID Reader With High Brightn
INQUIRY

Animal microchip scanner:

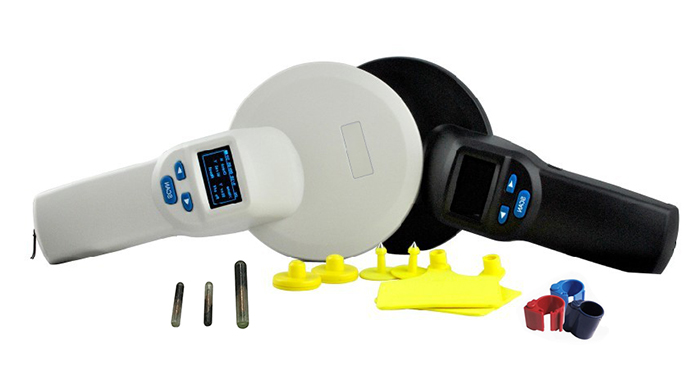

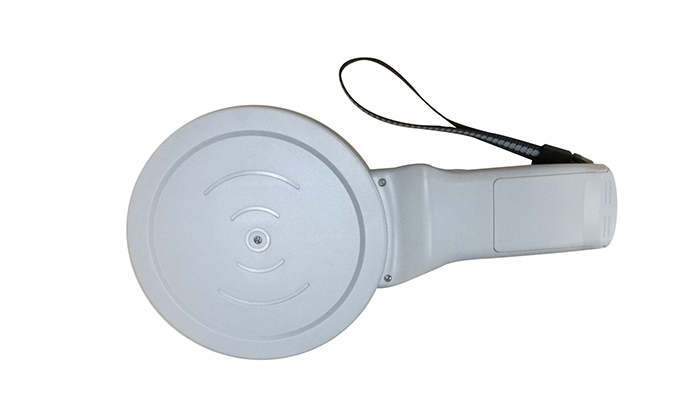

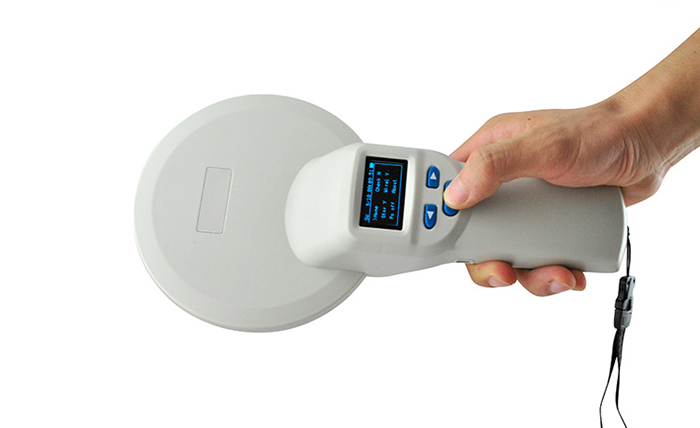

HR03 is a low frequency tag reader that using wireless identification technology and it suppors reading FDX-B(ISO11784/85) tag.HR03 using high brightness OLED display screen, and can be seen clearly inside the house or under the strong light outside. It can store up to 20000 tag information with its built-in memory, users can send the information to the computer through USB cable or wireless connection to manage data.This product is stable and easy to use, it can be used for animal management, resource management, railway inspection etc.

Features:

1)Support for most animal identification chips and ear tags on the market, including FDX-B (ISO11784 compliant), FDX-A and HDX chips.
2)Read fast, easy to operate, free PC communication software.
3)Supports seven languages: English, French, Spanish, Italian, Portuguese, German, Polish

Specification:

Product Name	FDX-B RFID Chip Animal Reader
Frequency	134.2Khz/125Khz
Tag format	FDX-B(ISO11784/85)
Reading/writing disatnce	2*12mm glass tag>15cm
Reading/writing disatnce	30mm ear tag>25cm
Reading access time	<100ms
Signal indicator	128*64 high brightness OLED,buzzer
Power	3.7V(3 AA batteries)
Power consumption	Working:0.9W Standby:0.04W
Storage capacity	20000information(tag coding+time)
Storage time	>20 years
Communication port	USB2.0,wireless USB HID(optional), Bluetooth(optional)
Weight	350g (without battery)
Languaeg	Chinese,English(Can be customized to your requirement)japanese,Russian
Work temperature	-10℃~50℃
Storage temperature	-30℃~70℃
