1. Introduction:

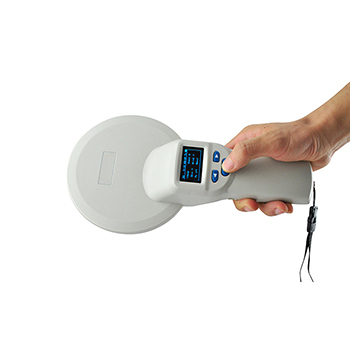

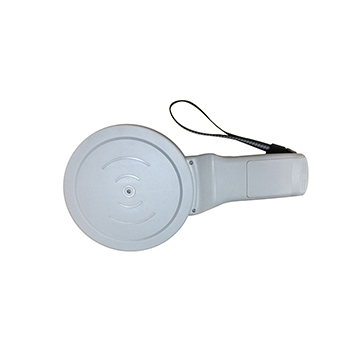

This is a low frequency tag scanner that using wireless identification technology and it supports reading EMID, FDX-B(ISO11784/85) etc. tag.This scanner using high brightness OLED display screen, and can be seen clearly inside the house or under the strong light outside. It can store up to 6000 tag information with its built-in memory, users can send the information to the computer through USB cable or wireless connection to manage data.This product is stable and easy to use, it can be used for animal management, resource management, railway inspection etc......
Features:
1. Support all common ISO11784/11785 RFID animal tags;
2. Easy operation, reading with only one button;
3. The display comes with backlight for easy reading in dark environment;
4. Big memory to in store up to 6000pcs ID number data;
5. Directly read the history data under internal reading mode;
6. Low battery alarm function when battery power is lower than 3.7V;
7. Optional output interface for external antenna;
8. Standard USB interfaces to connect with computer for data uploading.
Specifications:
Work frequency | 134.2Khz/125Khz |
Label format | EMID,FDX-B(ISO11784/85),HI-D |
Reading distance |
2 * 12mm glass label> 15cm (with the reader and the use of environment-related) |
Standard | ISO11784/85 |
Read Time | <100ms |
Signal indication | 128 * 64 high-brightness OLED, buzzer |
Power supply | 3.7V (three on the 5th lithium battery) |
Power consumption | Work: 0.9W, Standby: 0.04W |
Storage Capacity | 6000 information (tag encoding + time) |
Storage time | > 20 years |
Standby time | > 40 days |
Communication Interface | USB2.0, wireless HID (optional), Bluetooth (optional) |
Weight | 300g (without battery) |
Language | Chinese, English (can be customized according to customer requirements) |
Operating | -10°C~50°C |
Temperature | -30°C~70°C |
