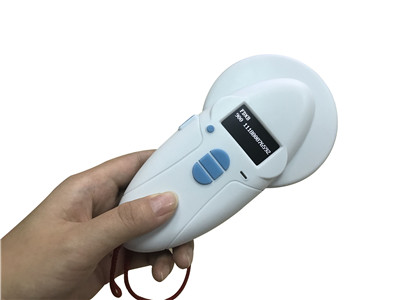

Animal Microchip Reader

XYX-HR02 support muti-protocol (FDX-A / FDX-B, HDX)with long range reading distance and OLED highlight energy-efficient display,Added the Blue tooth module and menu option function.It can read all meet the ISO11784 / 11785 standard pet chip, electronic ear tag, electronic foot ring and other animal electronic tags.


Feature:

  • Support for most animal identification chips and ear tags on the market, including FDX-B (ISO11784 compliant), FDX-A and HDX chips.
  • Read fast, easy to operate, free PC communication software.
  • Supports seven languages: English, French, Spanish, Italian, Portuguese, German, Polish

The new upgrade:

  • Reading distance increases, can easily read the glass tag more than 9CM;
  • Upgrade to OLED highlight energy-efficient display for easy viewing of data
  • Added menu option function, the operation is more convenient
  • Update to USB rechargeable lithium battery ,saving costs
  • Increase the BT communication module, data transmission more convenient

Specifications

Product Code XYX-HR02
Frequency 134.2kHz , 125kHz
Supported Chips ISO11784/5 FDX-A, FDX-B, EM4102
Reading Distance 16CM Diameter27mm,round Inlay
8CM length 12mm ,glass tag
Screen 128 × 64 pixels, black and white, OLED
Buttons 4 pcs
Buzzer and Indicator 2 charge indicator, 1 work indicator, 1 buzzer
Interface USB virtual serial port, BT virtual serial port
Dimension L 155mm x W 82mm x H 33 mm
Battery rechargeable battery,1400mAh,3.7V
Operating Temperature 0℃ - 50℃
Storage Temperature -10℃ - 60℃
Charging Mini USB interface to charge
Accessories Mini USB data cable, product description, battery, box
Standard FCC, CE certification, BT certification
